indoor
Design U.T. Egoluce
01/10
IP40 modular diffused light system for recessed installations with very small methacrylate structure, integrated LED circuit, anodized aluminum internal heat sink and methacrylate end caps.
LINEA is offered in different modular lengths from 12 cm up to 302 cm, in three shades of light, 2700K, 3000K, 4000K with CRI>90 or in RGB version.
Simplicity and ease of use are the hallmarks of the system. The small methacrylate edge allows installation without costly shaving, grouting and plastering.
LINEA creates a new way of lighting and understanding light. A linear lighting system without any interruption that becomes at the same time a decorative tool for designing and redefining space.
It is possible to draw lines and angles of continuous light in the same plane, or between different planes, wall/ceiling.

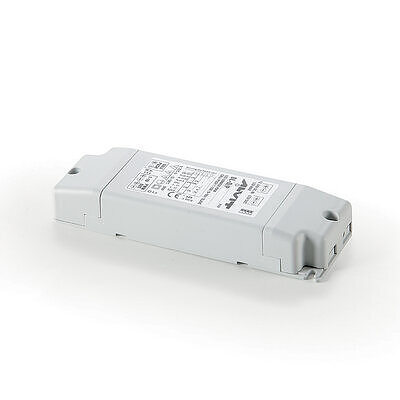

Ballasts must be ordered separately and should be chosen according to the power of the system you want to compose. Dimmable power supplies with PUSH, 1...10V, TRIAC or DALI control are also available, as well as control units for emergency lighting.
The luminaire can be installed on ceilings or plasterboard walls, and a special profile, to be ordered separately, is available to facilitate installation.
.01
White
01/07
| watt | code | finishes | 2700K | lm | 3000K | lm | 4000K | lm | RGB | |
|---|---|---|---|---|---|---|---|---|---|---|
| 12.00 cm | 1.5W | A6615.01/10 |
|
/XW | 156 | /WW | 165 | /W | 184 | |
| 12.00 cm | 1.5W | A6615.01/10RGB |
|
/ | / | / | RGB | |||
| 22.00 cm | 3W | A6615.01/20 |
|
/XW | 312 | /WW | 330 | /W | 368 | |
| 22.00 cm | 3W | A6615.01/20RGB |
|
/ | / | / | RGB | |||
| 32.00 cm | 4.5W | A6615.01/30 |
|
/XW | 468 | /WW | 495 | /W | 552 | |
| 32.00 cm | 4.5W | A6615.01/30RGB |
|
/ | / | / | RGB | |||
| 42.00 cm | 6W | A6615.01/40 |
|
/XW | 624 | /WW | 660 | /W | 736 | |
| 42.00 cm | 6W | A6615.01/40RGB |
|
/ | / | / | RGB | |||
| 52.00 cm | 7.5W | A6615.01/50 |
|
/XW | 780 | /WW | 825 | /W | 920 | |
| 52.00 cm | 7.5W | A6615.01/50RGB |
|
/ | / | / | RGB | |||
| 62.00 cm | 9W | A6615.01/60 |
|
/XW | 936 | /WW | 990 | /W | 1104 | |
| 62.00 cm | 9W | A6615.01/60RGB |
|
/ | / | / | RGB | |||
| 72.00 cm | 10.5W | A6615.01/70 |
|
/XW | 1092 | /WW | 1155 | /W | 1288 | |
| 72.00 cm | 10.5W | A6615.01/70RGB |
|
/ | / | / | RGB | |||
| 82.00 cm | 12W | A6615.01/80 |
|
/XW | 1248 | /WW | 1320 | /W | 1472 | |
| 82.00 cm | 12W | A6615.01/80RGB |
|
/ | / | / | RGB | |||
| 92.00 cm | 13.5W | A6615.01/90 |
|
/XW | 1404 | /WW | 1485 | /W | 1656 | |
| 92.00 cm | 13.5W | A6615.01/90RGB |
|
/ | / | / | RGB | |||
| 102.00 cm | 15W | 6615.01 |
|
/XW | 1560 | /WW | 1650 | /W | 1840 | |
| 102.00 cm | 14.4W | 6617.01 |
|
|||||||
| 112.00 cm | 16.5W | A6615.01/110 |
|
/XW | 1716 | /WW | 1815 | /W | 2024 | |
| 112.00 cm | 16.5W | A6615.01/110RGB |
|
/ | / | / | RGB | |||
| 122.00 cm | 18W | A6615.01/120 |
|
/XW | 1872 | /WW | 1980 | /W | 2208 | |
| 122.00 cm | 18W | A6615.01/120RGB |
|
/ | / | / | RGB | |||
| 132.00 cm | 19.5W | A6615.01/130 |
|
/XW | 2028 | /WW | 2145 | /W | 2392 | |
| 132.00 cm | 19.5W | A6615.01/130RGB |
|
/ | / | / | RGB | |||
| 142.00 cm | 21W | A6615.01/140 |
|
/XW | 2184 | /WW | 2310 | /W | 2576 | |
| 142.00 cm | 21W | A6615.01/140RGB |
|
/ | / | / | RGB | |||
| 152.00 cm | 22.5W | 6616.01 |
|
/XW | 2340 | /WW | 2475 | /W | 2760 | |
| 152.00 cm | - | 6618.01 |
|
|||||||
| 162.00 cm | 24W | A6615.01/160 |
|
/XW | 2496 | /WW | 2640 | /W | 2944 | |
| 162.00 cm | 24W | A6615.01/160RGB |
|
/ | / | / | RGB | |||
| 172.00 cm | 25.5W | A6615.01/170 |
|
/XW | 2652 | /WW | 2805 | /W | 3128 | |
| 172.00 cm | 25.5W | A6615.01/170RGB |
|
/ | / | / | RGB | |||
| 182.00 cm | 27W | A6615.01/180 |
|
/XW | 2808 | /WW | 2970 | /W | 3312 | |
| 182.00 cm | 27W | A6615.01/180RGB |
|
/ | / | / | RGB | |||
| 192.00 cm | 28.5W | A6615.01/190 |
|
/XW | 2964 | /WW | 3135 | /W | 3496 | |
| 192.00 cm | 28.5W | A6615.01/190RGB |
|
/ | / | / | RGB | |||
| 202.00 cm | 30W | A6615.01/200 |
|
/XW | 3120 | /WW | 3300 | /W | 3680 | |
| 202.00 cm | 30W | A6615.01/200RGB |
|
/ | / | / | RGB | |||
| 212.00 cm | 31.5W | A6615.01/210 |
|
/XW | 3276 | /WW | 3465 | /W | 3864 | |
| 212.00 cm | 31.5W | A6615.01/210RGB |
|
/ | / | / | RGB | |||
| 222.00 cm | 33W | A6615.01/220 |
|
/XW | 3432 | /WW | 3630 | /W | 4048 | |
| 222.00 cm | 33W | A6615.01/220RGB |
|
/ | / | / | RGB | |||
| 232.00 cm | 34.5W | A6615.01/230 |
|
/XW | 3588 | /WW | 3795 | /W | 4232 | |
| 232.00 cm | 34.5W | A6615.01/230RGB |
|
/ | / | / | RGB | |||
| 242.00 cm | 36W | A6615.01/240 |
|
/XW | 3744 | /WW | 3960 | /W | 4416 | |
| 242.00 cm | 36W | A6615.01/240RGB |
|
/ | / | / | RGB | |||
| 252.00 cm | 37.5W | A6615.01/250 |
|
/XW | 3900 | /WW | 4125 | /W | 4600 | |
| 252.00 cm | 37.5W | A6615.01/250RGB |
|
/ | / | / | RGB | |||
| 262.00 cm | 39W | A6615.01/260 |
|
/XW | 4056 | /WW | 4290 | /W | 4784 | |
| 262.00 cm | 39W | A6615.01/260RGB |
|
/ | / | / | RGB | |||
| 272.00 cm | 40.5W | A6615.01/270 |
|
/XW | 4212 | /WW | 4455 | /W | 4968 | |
| 272.00 cm | 40.5W | A6615.01/270RGB |
|
/ | / | / | RGB | |||
| 282.00 cm | 42W | A6615.01/280 |
|
/XW | 4368 | /WW | 4620 | /W | 5152 | |
| 282.00 cm | 42W | A6615.01/280RGB |
|
/ | / | / | RGB | |||
| 292.00 cm | 43.5W | A6615.01/290 |
|
/XW | 4524 | /WW | 4785 | /W | 5336 | |
| 292.00 cm | 43.5W | A6615.01/290RGB |
|
/ | / | / | RGB | |||
| 302.00 cm | 45W | A6615.01/300 |
|
/XW | 4680 | /WW | 4950 | /W | 5520 | |
| 302.00 cm | 45W | A6615.01/300RGB |
|
/ | / | / | RGB | |||
