indoor
Design U.T. Egoluce
01/03

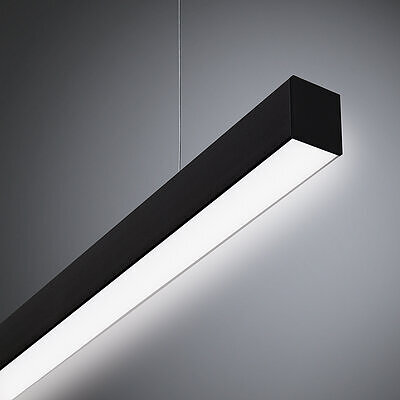

Linear suspension lamp with diffused light with integrated LED circuit, aluminum frame and satin methacrylate diffuser.
The absence of screws and the attachment of cables inside the bar make RIGA an easy-to-install lamp.
RIGA suspension is arranged so that it can also be installed in multiple compositions.
The fixing kit is supplied with the lamp while the ceiling rose with integrated driver must be ordered separately. Ceiling roses with dimmable power supplies with PUSH, 1...10V, TRIAC or DALI control are also available.
The choice of ceiling rose is determined by the sum of the wattages of the individual lamps used in the system.
RIGA is offered in different modular lengths from 77.5 cm up to 302.5 cm.
The simple line gives RIGA an appearance that is well suited to any type of environment and a wide range of installations in both private and public settings.
.01
White
.02
Black
| watt | code | finishes | 2700K | lm | 3000K | lm | 4000K | lm | |
|---|---|---|---|---|---|---|---|---|---|
| 77.50 cm | 14.4W | 1684.01 |
|
/XW | 1642 | /WW | 1732 | /W | 1860 |
| 77.50 cm | 14.4W | 1684.02 |
|
/XW | 1642 | /WW | 1732 | /W | 1860 |
| 102.50 cm | 19.2W | A1684.01/100 |
|
/XW | 2190 | /WW | 2310 | /W | 2480 |
| 102.50 cm | 19.2W | A1684.02/100 |
|
/XW | 2190 | /WW | 2310 | /W | 2480 |
| 127.50 cm | 24W | A1684.01/125 |
|
/XW | 2737 | /WW | 2980 | /W | 3100 |
| 127.50 cm | 24W | A1684.02/125 |
|
/XW | 2737 | /WW | 2980 | /W | 3100 |
| 152.50 cm | 28.8W | A1684.01/150 |
|
/XW | 3285 | /WW | 3465 | /W | 3720 |
| 152.50 cm | 28.8W | A1684.02/150 |
|
/XW | 3285 | /WW | 3465 | /W | 3720 |
| 177.50 cm | 33.6W | A1684.01/175 |
|
/XW | 3832 | /WW | 4042 | /W | 4340 |
| 177.50 cm | 33.6W | A1684.02/175 |
|
/XW | 3832 | /WW | 4042 | /W | 4340 |
| 202.50 cm | 38.4W | A1684.01/200 |
|
/XW | 4380 | /WW | 4620 | /W | 4960 |
| 202.50 cm | 38.4W | A1684.02/200 |
|
/XW | 4380 | /WW | 4620 | /W | 4960 |
| 227.50 cm | 43.2W | A1684.01/225 |
|
/XW | 4927 | /WW | 5197 | /W | 5580 |
| 227.50 cm | 43.2W | A1684.02/225 |
|
/XW | 4927 | /WW | 5197 | /W | 5580 |
| 252.50 cm | 48W | A1684.01/250 |
|
/XW | 5474 | /WW | 5775 | /W | 6200 |
| 252.50 cm | 48W | A1684.02/250 |
|
/XW | 5474 | /WW | 5775 | /W | 6200 |
| 277.50 cm | 52.8W | A1684.01/275 |
|
/XW | 6222 | /WW | 6352 | /W | 6820 |
| 277.50 cm | 52.8W | A1684.02/275 |
|
/XW | 6222 | /WW | 6352 | /W | 6820 |
| 302.50 cm | 57.6W | A1684.01/300 |
|
/XW | 6570 | /WW | 6930 | /W | 7440 |
| 302.50 cm | 57.6W | A1684.02/300 |
|
/XW | 6570 | /WW | 6930 | /W | 7440 |
