01 / 02
LED Source 25W/m
| .01 |
White |
| /W | 31W | 127 cm | 3440lm | 4000K | CRI>90 | |
| /WW | 31W | 127 cm | 3000lm | 3000K | CRI>90 | |
| /XW | 31W | 127 cm | 2860lm | 2700K | CRI>90 | |
| /W | 37.5W | 152 cm | 4130lm | 4000K | CRI>90 | |
| /WW | 37.5W | 152 cm | 3600lm | 3000K | CRI>90 | |
| /XW | 37.5W | 152 cm | 3440lm | 2700K | CRI>90 | |
| /W | 44W | 177 cm | 4800lm | 4000K | CRI>90 | |
| /WW | 44W | 177 cm | 4200lm | 3000K | CRI>90 | |
| /XW | 44W | 177 cm | 4000lm | 2700K | CRI>90 |
| Electrification: | 220-240V |
| Light: | live |
| IP grade: | 40 |
| Net weight: | 2.10 kg |
| Materials: | aluminum/methacrylate |
Linear direct-light suspension lamp with extruded aluminum body, sized to be able to hold power supplies, micro-primed methacrylate diffuser, ABS ceiling rose, 25W/m Down circuit and 15W/m Up circuit both with 180 LEDs/m and with CRI>90.
Properly installed it guarantees UGR<19 (Unified Glare Rating).

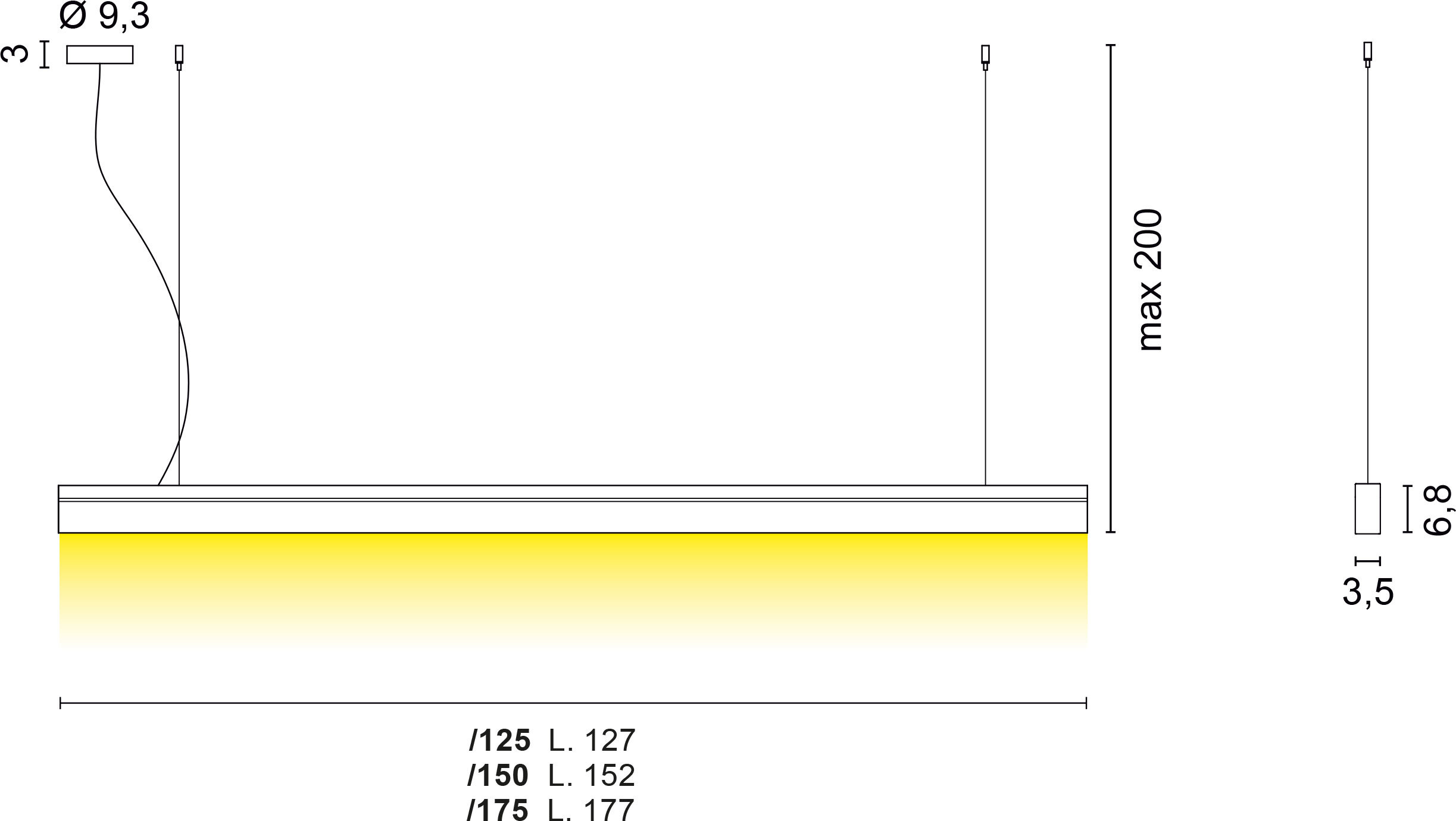

Available in the catalog in three different sizes.
The absence of screws, the ballast integrated into the structure and the cable fixing inside the bar make Rail UGR an easy lamp to install.
On request it is available with dimmable power supplies for PUSH, 1...10V or DALI control and with other finishes besides matte white.
Rail Suspension UGR is ideal and recommended for workstations in both professional and residential settings.
Available in different sizes upon request.
