RAIL SYSTEM WALL

Luminaire suitable for installation on normally flammable surfaces

4581

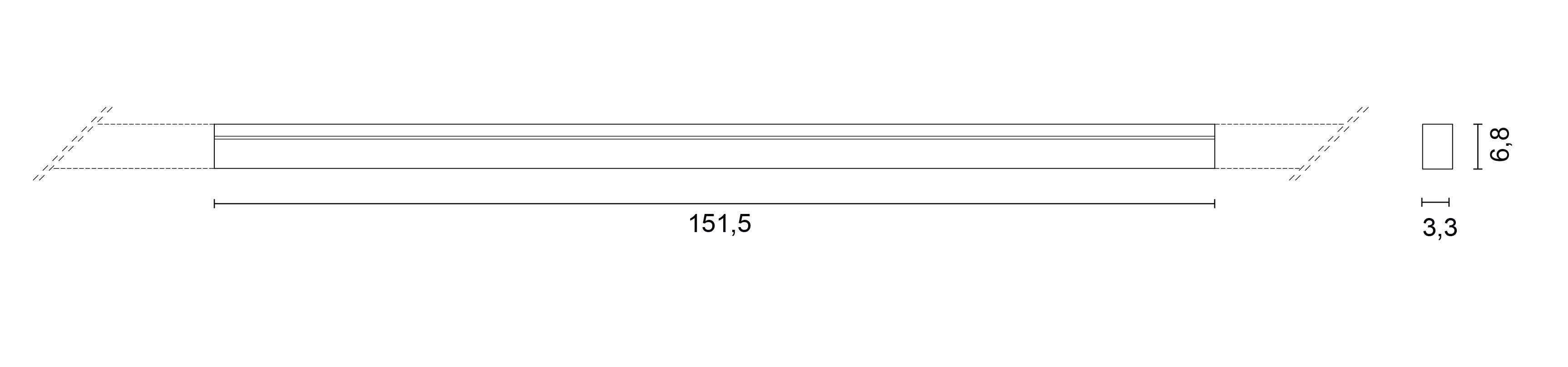

151.10 cm

Select the finish and type of lamps to find out the corresponding code

.01

White

/W	27W	3390lm	4000K	CRI>90
/WW	27W	3030lm	3000K	CRI>90
/XW	27W	2835lm	2700K	CRI>90

Technical features

Electrification:	220-240V
Light:	radical
IP grade:	40
Net weight:	1.50 kg
Materials:	aluminum/methacrylate

Documentation

Data sheet Assembly instructions LDT Files

Modular linear wall-mounted grazing lighting system with an extruded aluminum body, sized to accommodate 18W/m and 180 LED/m ballasts and circuit with CRI>90.
The frosted methacrylate diffuser, end caps and accessories for the composition are to be ordered separately.
Rail System Wall is offered in different modular lengths from 61.5 cm up to 301.5 and is available in other finishes, with dual emission and, depending on the size of the composition, with PUSH, 1...10V and DALI dimming control.
Rail System is a different way of interpreting light. A continuous linear system that becomes a decorative tool for designing and redefining space.
The modularity of the elements allows for multiple lighting configurations without shadows or interruptions.
The absence of screws and the power supply integrated into the structure make Rail an easy-to-install lamp.
