DOT PLUS QUADRO

Luminaire suitable for installation on normally flammable surfaces

Low-voltage luminaire with remote transformer.

6317

Select the finish and type of lamps to find out the corresponding code

	.01	White
	.32	Satin nickel

/W	1W	158lm	4000K	CRI>90
/WW	1W	150lm	3000K	CRI>90
/XW	1W	143lm	2700K	CRI>90

	15	Optical grade
	25	Optical grade
	45	Optical grade

Technical features

Electrification:	350mA
Light:	live
IP grade:	44
Net weight:	0.02 kg

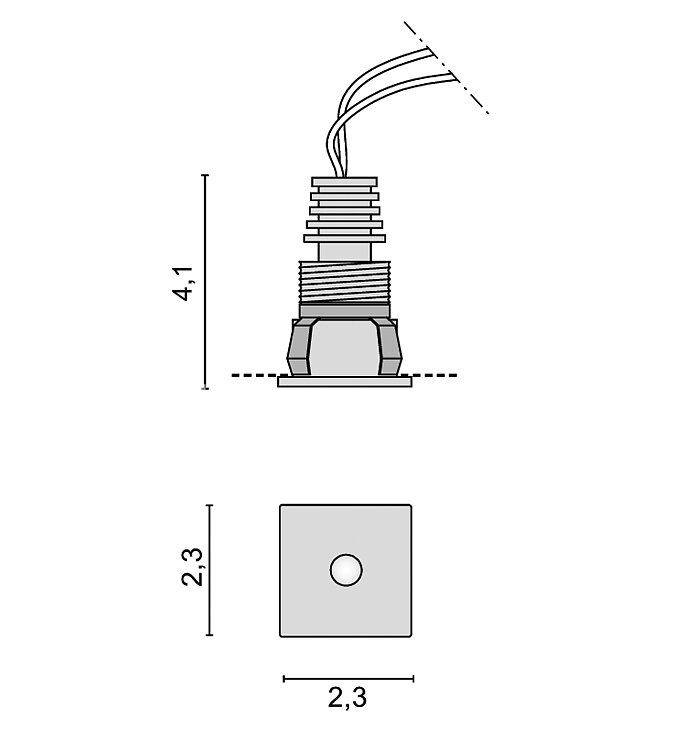

Round recessed hole:	2.00 cm
Materials:	aluminium

Documentation

Data sheet Assembly instructions

IP44 recessed direct-light micro spotlight with aluminum body and heat sink, integrated 350mA LED source and optical apertures of 15°, 25° and 45°.
DOT PLUS is available in the catalog with integrated 350mA power LED with white light at 2700K /XW, 3000K /WW and 4000K /W and CRI>90.
The spotlight can be mounted directly on ceilings or plasterboard walls with the provided spring or installed in bricks using the separately ordered formwork.
The micro dimensions make it suitable for use in groups for scenic installations such as starry skies or individually as a signal light.
Operation of the spotlight requires the use of a driver to be ordered separately. Dimmable power supplies are also available for PUSH, 1...10V, TRIAC or DALI control.
