01 / 03
| .01 |
White |
|
| .02 |
Black |
|
| .21 |
Glossy gold |
|
| .31 |
Chromed |
|
| .32 |
Satin nickel |
| /WW | 8.7W | 1156lm | 3000K | CRI>90 | |
| /W | 8.7W | 1223lm | 4000K | CRI>90 | |
| /XW | 8.7W | 1106lm | 2700K | CRI>90 |
| ST | Optical grade |
| Electrification: | 500mA |
| Light: | live |
| IP grade: | 54 |
| Net weight: | 0.20 kg |

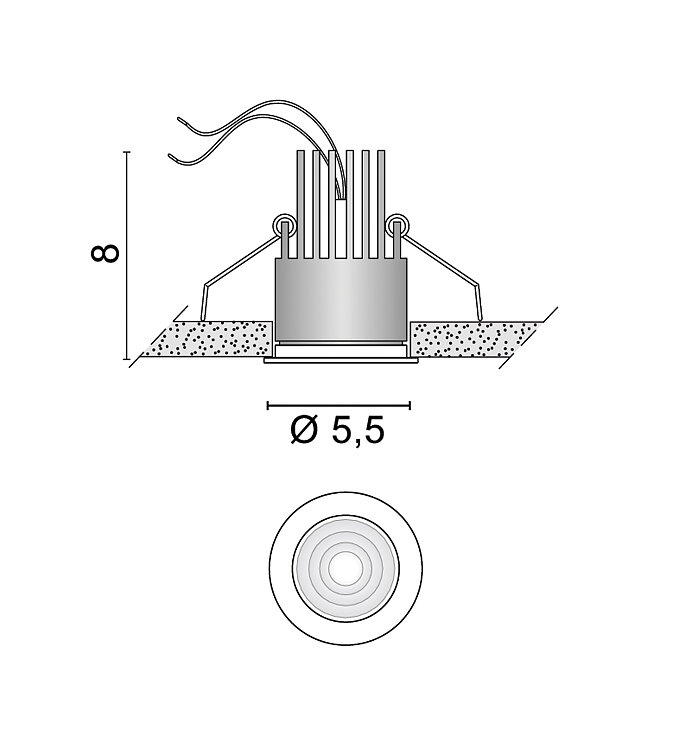

| Round recessed hole: | 5.00 cm |
| Materials: | aluminium |
IP54 recessed "mini trim" spotlight for plasterboard ceilings with integrated 500mA LED source, aluminum frame, 38° optical aperture and available with clear or frosted glass front lens.
The size of the LED and the positioning set back from the reflector reduce direct glare ensuring a uniform and comfortable cone of light.
DISSY is supplied with 2700K, 3000K and 4000K white light COB LEDs with CRI>90.
Optical aperture beams of 24°or 58° are available on request.
Operation requires the use of a ballast to be ordered separately. Also available are dimmable power supplies for PUSH, 1...10V, TRIAC or DALI control and units for emergency operation.
