EASY TONDO GU10

Luminaire suitable for installation on normally flammable surfaces

Class II luminaire equipped with double or reinforced insulation.

6442

7W GU10 LED DIM (art. 0104/...)

7W GU10 LED (art. 0094/...)

Select the finish and type of lamps to find out the corresponding code

.01

White

Technical features

Electrification:	220-240V
Light:	live
IP grade:	20
Net weight:	0.20 kg

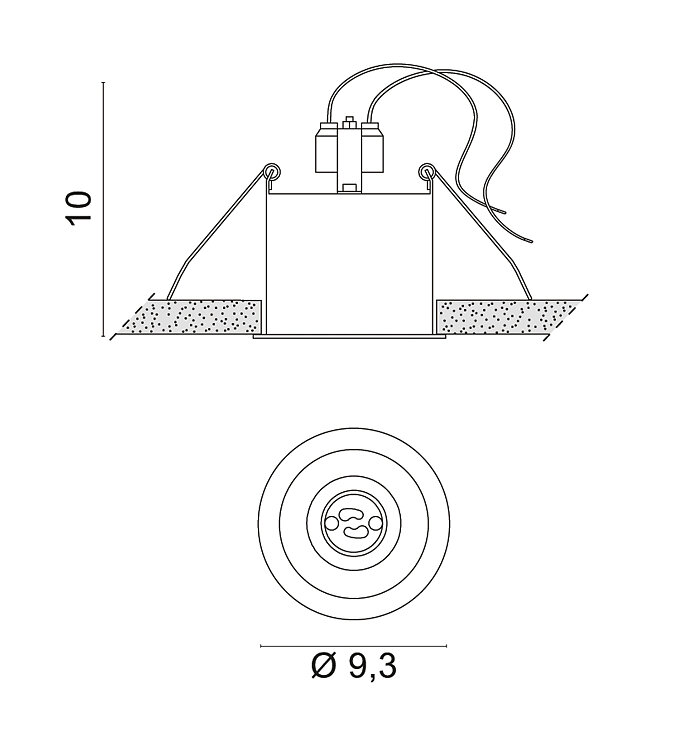

Round recessed hole:	8.60 cm
Materials:	aluminium

Documentation

Data sheet Assembly instructions

Recessed "mini trim" spotlight for direct light for plasterboard false ceilings with matt white painted metal body, backward optics, lamp holder with GU10 socket and the possibility of diffused light thanks to the satin methacrylate diffuser screen to be ordered separately.
Installation involves fixing the body by means of a system adaptable to different plasterboard thicknesses and subsequent plastering, levelling and painting operations.
The electrical components are inserted subsequently and are easily removable for maintenance. The end result is the complete integration of the light body with the architecture without the presence of protrusions or external frames.
EASY TONDO 230V operates without a ballast by connecting directly to the mains voltage and provides for the use of modern LED sources to be ordered separately.
